PoE module Ag9120-S for Arduino Ethernet Shield, Arduino Ethernet board Review
PoE module Ag9120-S for Arduino Ethernet Shield, Arduino Ethernet board Feature
- IEEE802.3af compliant
- Small SIL package size - 56mm (L) x 14mm (H)
- Low output ripple and noise
- Input voltage range 36V to 57V, Overload and short-circuit protection
- 12V output
PoE module Ag9120-S for Arduino Ethernet Shield, Arduino Ethernet board Overview

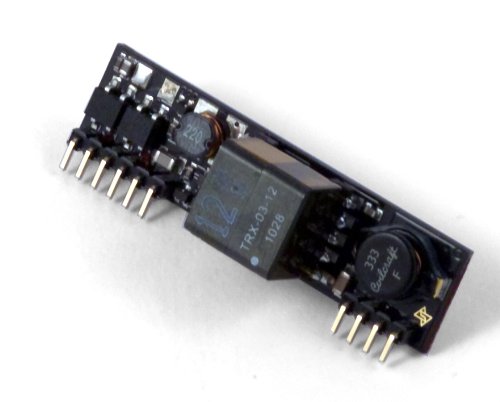

The Ag9120-S is a module designed to extract power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE 802.3af Power-over-Ethernet (PoE) standard.The Ag9120-S provides the PoE compatibility signature and power classification required by the Power Sourcing Equipment (PSE) before applying up to 15W power to the port.The high efficiency DC/DC converter operates over a wide input voltage range (36V to 48V typ) and provides a regulated low ripple and low noise output. The DC/DC converter also has built-in overload and short-circuit output protection.Available at Amazon
