SainSmart Arduino UNO, ATmega328p + SainSmart LCD Keypad Shield + SainSmart XBee Shield + SainSmart Sensor Shield V4 + SainSmart Ethernet Shield Review
SainSmart Arduino UNO, ATmega328p + SainSmart LCD Keypad Shield + SainSmart XBee Shield + SainSmart Sensor Shield V4 + SainSmart Ethernet Shield Feature
- The SainSmart UNO is a microcontroller board based on the ATmega328.
- The SainSmart LCD Keypad shield module for Arduino Diecimila Duemilanove, UNO, MEGA1280, MEGA2560 board.
- The SainSmart XBee Shield is a compliant solution designed to meet low-cost, low-power wireless sensor networks with special needs.
- The SainSmart sensor shield can connect to various modules like sensors, servos, relays, buttons, potentiometers.
- The SainSmart Ethernet Shield, your Arduino board can be used to connect to internet.
SainSmart Arduino UNO, ATmega328p + SainSmart LCD Keypad Shield + SainSmart XBee Shield + SainSmart Sensor Shield V4 + SainSmart Ethernet Shield Overview
NOTE: Buy them TOGETHER and get at the REDUCE price. It is a big bargain!!!
The XBee shield does not include the XBee module. Please send e-mail to us for sch.pdf if you need one after your purchase.
The SainSmart Uno for Arduino: It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button and features the Atmega8U2 programmed as a USB-to-serial converter and has a resistor pulling the 8U2 HWB line to ground, making it easier to put into DFU mode.
The SainSmart Sensor Shield V4.0 for Arduino: It allows you to connect to various modules like sensors, servos, relays, buttons, potentiometers.
The SainSmart LCD Keypad Shield for Arduino: It includes a 16x2 HD44780 White on Blue LCD module and a 5 push button keypad for menu selection and user interface programming. Fully assembled. On-line Arduino tutorial and example code. Compatible with Arduino Uno, Mega, Duemilanove. Uses digital pins 4 - 10, and analog pin 0.
The SainSmart XBee board for Arduino: It allows to wireless communicate over a modified ZigBee protocol using the popular XBee module from Maxstream.
The SainSmart Ethernet Shield for Arduino: It is based on the Wiznet W5100 ethernet chip. The Wiznet W5100 provides a network (IP) stack capable of both TCP and UDP. It supports up to four simultaneous socket connections. Use the Ethernet library to write sketches which connect to the internet using the shield.

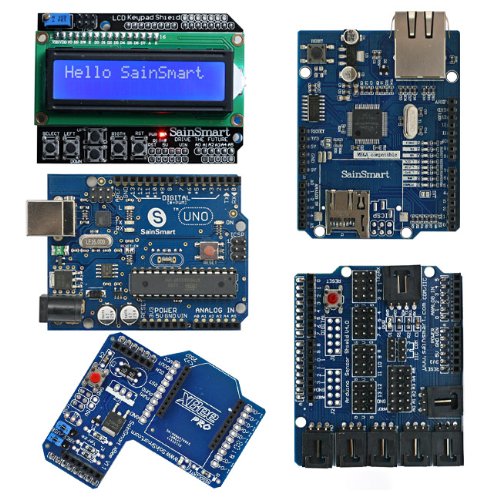

Package Content:
1 SainSmart Uno Board
1 SainSmart Sensor Shield V4.0
1 SainSmart LCD Keypad shield
1 SainSmart XBee Shield
1 SainSmart Ethernet Shield
