HC-SR04, Ultrasonic, Distance Sensor+ SainSmart Graphic LCD4884 Shield Review

HC-SR04, Ultrasonic, Distance Sensor+ SainSmart Graphic LCD4884 Shield Feature

• Ultrasonic Module HC-SR04 Distance Sensor automatically sends eight 40 kHz and detect whether there is a pulse signal back.
• The SainSmart Graphic LCD4884 Shield has one 5 degree joystick (using Arduino Analog Pin 0)
• Buy them TOGETHER and get at the REDUCE price. It is a big bargain!!!

HC-SR04, Ultrasonic, Distance Sensor+ SainSmart Graphic LCD4884 Shield Overview

The link bellow is the code for the LCD4884. Please download it if you need it.
https://s3-ap-northeast-1.amazonaws.com/sain-amzn/20/20-011-906/LCD4884s.rar

The SainSmart LCD4884 Shield provides 48x48 display. This LCD shield can apparently meet your needs to display much information. It can display English, Chinese, even images. It also integrates a 5 DOF joystick. The shield has 6 Digital IO and 5 Analog IO.This 3 pin connector has a temperature sensor which can help indicate the temperature.

The Ultrasonic Module HC-SR04 Distance Sensor are 4 pins : VCC , Trig, Echo, GND . So it's a very easy interface for controller to use it ranging. The all process is: pull the Trig pin to high level for more than 10us impulse, the module start ranging;finish ranging. If you find an object in front , Echo pin will be high level , and based on the different distance, it will take the different duration of high level. So we can calculated the distance easily :
Distance = ((Duration of high level)*(Sonic :340m/s))/2

Package Content:
1 SainSmart LCD4884 Shield
1 SainSmart HC-SR04 Distance Sensor

Available at Amazon

Related Products

Customer Reviews

*** Product Information and Prices Stored: Mar 31, 2012 13:00:11

Arduino UNO board Review

Arduino UNO board Feature

• 16MHz ATmega 328
• Official board made in Italy

Arduino UNO board Overview

The Arduino Uno is an open source electronics prototyping platform based on the ATmega328 microcontroller. It is equipped with 14 digital I/O pins, six of which can be used as PWM outputs, 6 analog inputs, 16MHz oscillator, USB interface, DC power jack and an ICSP header.Only the board is included and a USB cable is required to program.

Available at Amazon

Related Products

• BB400 Solderless Plug-in BreadBoard, 400 tie-points, 4 power rails, 3.3 x 2.1 x 0.3in (84 x 54 x 9mm)
• Breadboard jumper wire 70pcs pack
• Electronic Parts for Getting Started With Arduino book (BOOK NOT INCLUDED)
• Elenco 350 Piece Pre-formed Jumper Wire Kit
• microtivity LCD Module 1602, White on Blue with Backlight

Customer Reviews

*** Product Information and Prices Stored: Mar 30, 2012 11:45:12

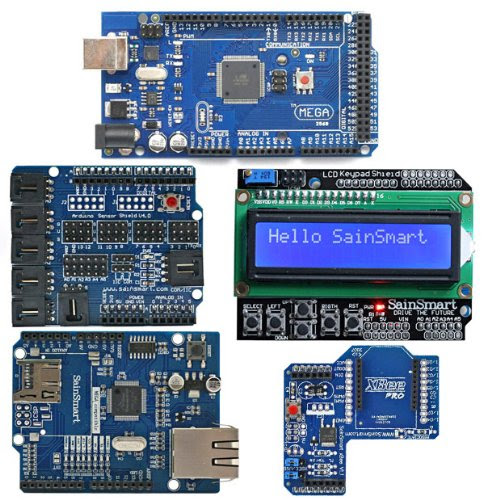

SainSmart Arduino Mega1280 + SainSmart LCD Keypad Shield + SainSmart XBee Shield Review

SainSmart Arduino Mega1280 + SainSmart LCD Keypad Shield + SainSmart XBee Shield Feature

• The SainSmart Mega 1280's key and crystal use more SMD components to reduce artificial welding, assuring product consistency
• The SainSmart LCD Keypad shield module for Arduino Diecimila Duemilanove, UNO, MEGA1280, MEGA2560 board
• The SainSmart Ethernet Shield, your Arduino board can be used to connect to internet.
• Buy them TOGETHER and get at the REDUCE price. It is a big bargain!!!

SainSmart Arduino Mega1280 + SainSmart LCD Keypad Shield + SainSmart XBee Shield Overview

NOTE: The XBee Shield does not include the XBee module.Please send e-mail to us for sch.pdf if you need one after your purchase.

The SainSmartMega 1280 for Arduino: It has 54 digital input/output pins (of which 14 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.

The SainSmart LCD Keypad Shield for Arduino: This includes a 16x2 HD44780 White on Blue LCD module and a 5 push button keypad for menu selection and user interface programming. Fully assembled. On-line Arduino tutorial and example code. Compatible with Arduino Uno, Mega, Duemilanove. Uses digital pins 4 - 10, and analog pin 0.

The SainSmart  XBee board for Arduino: It mates directly with the Arduino USB board and allows to wireless communicate over a modified ZigBee protocol using the popular XBee module from Maxstream.

The module is easy to use, low power consumption, and the provision of critical data between devices reliable transmission. As the innovative design, XBee-PRO can be in the range 2-3 times beyond the standard ZigBee modules. XBee-PRO modules work in the ISM 2.4 GHz frequency band. The MaxStream's XBee (1 mW) Zigbee module is pin-compatible.You can use a simple AT command to advanced configuration. An OEM developer is now XBee code development package. It is self-developed in collaboration with the MaxStream ZigBee/802.15.4 RF module code.

Package Content:
1 SainSmart Mega 1280
1 SainSmart LCD Keypad Shield
1 SainSmart XBee shield

Available at Amazon

Related Products

Customer Reviews

*** Product Information and Prices Stored: Mar 29, 2012 10:00:07

SainSmart Arduino UNO + SainSmart Graphic LCD4884 Shield + SainSmart Prototype Shield(with Breadboard Jump Wires) + HC-SR04, Ultrasonic, Distance Sensor Review

SainSmart Arduino UNO + SainSmart Graphic LCD4884 Shield + SainSmart Prototype Shield(with Breadboard Jump Wires) + HC-SR04, Ultrasonic, Distance Sensor Feature

• The SainSmart UNO is a microcontroller board based on the ATmega328.
• The SainSmart Graphic LCD4884 Shield has one 5 degree joystick (using Arduino Analog Pin 0)
• SainSmart Prototype Shield: Access to a BlueSMiRF socket for wireless communication between Arduinos
• Ultrasonic Module HC-SR04 Distance Sensor automatically sends eight 40 kHz and detect whether there is a pulse signal back
• Buy them TOGETHER and get at the REDUCE price. It is a big bargain!!!

SainSmart Arduino UNO + SainSmart Graphic LCD4884 Shield + SainSmart Prototype Shield(with Breadboard Jump Wires) + HC-SR04, Ultrasonic, Distance Sensor Overview

The link bellow is the code for the LCD4884. Please download it if you need it.
https://s3-ap-northeast-1.amazonaws.com/sain-amzn/20/20-011-906/LCD4884s.rar

The SainSmart Uno for Arduino contains everything needed to support the microcontroller.The Uno features the Atmega8U2 programmed as a USB-to-serial converter and has a resistor pulling the 8U2 HWB line to ground, making it easier to put into DFU mode.

The SainSmart LCD4884 Shield provides 48x48 display. This LCD shield can apparently meet your needs to display much information. It can display English, Chinese, even images. It also integrates a 5 DOF joystick. The shield has 6 Digital IO and 5 Analog IO.This 3 pin connector has a temperature sensor which can help indicate the temperature.

The SainSmart Prototype Shield is a great kit to new Arduino users and geeks who have sparkling ideas. You can choose to do soldering in the soldering area. You can also make good use of the mini breadboard which can save your time of soldering. Try any circuit you want to the Arduino. You also can choose to use your own breadboard.

The Ultrasonic Module HC-SR04 Distance Sensor are 4 pins : VCC , Trig, Echo, GND . So it's a very easy interface for controller to use it ranging. The all process is: pull the Trig pin to high level for more than 10us impulse, the module start ranging;finish ranging. If you find an object in front , Echo pin will be high level , and based on the different distance, it will take the different duration of high level. So we can calculated the distance easily :
Distance = ((Duration of high level)*(Sonic :340m/s))/2

Package Content:
1 SainSmart Uno for Arduino
1 SainSmart LCD4884 Shield
1 SainSmart Prototype Shield (with Breadboard Jump Wires)
1 SainSmart HC-SR04 Distance Sensor

Available at Amazon

Related Products

Customer Reviews

*** Product Information and Prices Stored: Mar 28, 2012 06:30:05

SainSmart Arduino MEGA, ATmega2560 + SainSmart Sensor Shield V4 + SainSmart XBee Shield +SainSmart LCD Keypad Shield + SainSmart Ethernet Shield Review

SainSmart Arduino MEGA, ATmega2560 + SainSmart Sensor Shield V4 + SainSmart XBee Shield +SainSmart LCD Keypad Shield + SainSmart Ethernet Shield Feature

• The SainSmart LCD Keypad shield module for Arduino Diecimila Duemilanove, UNO, MEGA1280, MEGA2560 board
• The SainSmart sensor shield can connect to various modules like sensors, servos, relays, buttons, potentiometers.
• The SainSmart XBee Shield is a compliant solution designed to meet low-cost, low-power wireless sensor networks with special needs.
• The SainSmart LCD Keypad shield module for Arduino Diecimila Duemilanove, UNO, MEGA1280, MEGA2560 board.
• The SainSmart Ethernet Shield, your Arduino board can be used to connect to internet.

SainSmart Arduino MEGA, ATmega2560 + SainSmart Sensor Shield V4 + SainSmart XBee Shield +SainSmart LCD Keypad Shield + SainSmart Ethernet Shield Overview

NOTE: Buy them TOGETHER and get at the REDUCE price. It is a big bargain!!!
The XBee shield does not include the XBee module. Please send e-mail to us for sch.pdf if you need one after your purchase.

The SainSmart MEGA 2560 Board for Arduino: This is a microcontroller board based on the ATmega2560. It has 54 digital input/output pins (of which 14 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button.

The SainSmart Sensor Shield V4.0 for Arduino: It allows you to connect to various modules like sensors, servos, relays, buttons, potentiometers.

The SainSmart LCD Keypad Shield for Arduino: It includes a 16x2 HD44780 White on Blue LCD module and a 5 push button keypad for menu selection and user interface programming. Fully assembled. On-line Arduino tutorial and example code. Compatible with Arduino Uno, Mega, Duemilanove. Uses digital pins 4 - 10, and analog pin 0.

The SainSmartArduino XBee board for Arduino: It allows to wireless communicate over a modified ZigBee protocol using the popular XBee module from Maxstream.

The SainSmart Ethernet Shield for Arduino: allows an Arduino board to connect to the internet. It is based on the Wiznet W5100 ethernet chip. The Wiznet W5100 provides a network (IP) stack capable of both TCP and UDP. It supports up to four simultaneous socket connections. Use the Ethernet library to write sketches which connect to the internet using the shield.

Package Content:
1 SainSmart MEGA 2560 Board
1 SainSmart Sensor Shield V4.0
1 SainSmart LCD Keypad shield
1 SainSmart XBee Shield
1 SainSmart Ethernet Shield

Available at Amazon

Related Products

Customer Reviews

*** Product Information and Prices Stored: Mar 27, 2012 05:15:10

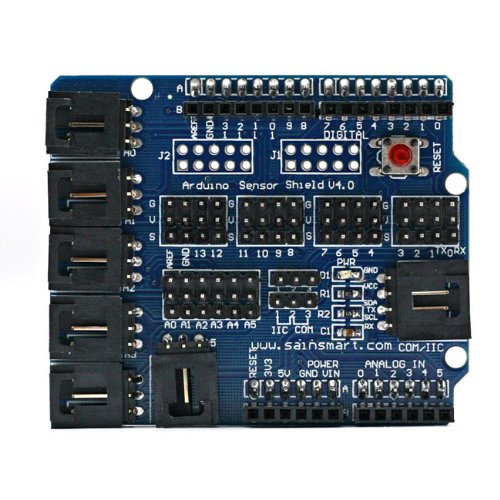

SainSmart Sensor Shield Digital Analog Module V4 for Arduino UNO MEGA Duemilanove Review

SainSmart Sensor Shield Digital Analog Module V4 for Arduino UNO MEGA Duemilanove Feature

• Operating Voltage: 5V DC ;Input Voltage (recommended): 7-12VDC ;Input Voltage (limits): 6-20VDC
• Buckled Analog Port:Handy, solid connection to 6 Analog inputs with VCC/GND
• Digital IO port:13 ports prepared to digital modules or servos
• Analog IO Port:2.54 grid male pin header connections
• Buckled Communication Port:Selectable between I2C and UART

SainSmart Sensor Shield Digital Analog Module V4 for Arduino UNO MEGA Duemilanove Overview

Arduino Sensor Shield V4.0allows you to connect to various modules like sensors, servos, relays, buttons, potentiometers..........just plug & play! Each functional module has buckled port with VCC, GND and Output, which has corresponding port on the Sensor Shield, connected with a plain 2.54mm dual-female cable you may start playing already. Buckled brick cables are like cement for bricks, make the connections easier, secure and more professional looking.

Available at Amazon

Related Products

• Arduino Uno R3
• Arduino UNO board
• Virtuabotix DHT11 Digital Temperature/Humidity Sensor
• BB400 Solderless Plug-in BreadBoard, 400 tie-points, 4 power rails, 3.3 x 2.1 x 0.3in (84 x 54 x 9mm)
• Arduino Duemilanove Board

Customer Reviews

*** Product Information and Prices Stored: Mar 26, 2012 05:00:17

SainSmart 8-Channel 5V Solid State Relay Module Board for Arduino ARM DSP PIC Review

SainSmart 8-Channel 5V Solid State Relay Module Board for Arduino ARM DSP PIC Feature

• Has been assembled, and electrical test passed.
• Led indicator for each relay.
• FR-4 Fiber glass PCB ( Double Layer ).
• PCB thickness: 1.6mm. Size: 155 x 55 x 24 mm ( approximately 6.1 x 2.17 x 0.95 inch ).
• Standard interface that can be controlled directly by microcontroller (Arduino , 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic)

SainSmart 8-Channel 5V Solid State Relay Module Board for Arduino ARM DSP PIC Overview

SSR Output (each channel):
Load voltage range: 75 to 264VAC (50/60Hz).
Load current: 0.1 to 2 AMP.

Power supply:
5VDC / 160mA (all channel ON).

Input control signal voltage:
0V - 0.5V Low stage (SSR is OFF)
0.5V - 2.5V (unknown state).
2.5V - 20V High state (SSR is ON).

SSR Spec.:
Manufacturer: OMRON
Part number: G3MB-202P, 5V version.
Isolation: Phototriac.
Zero cross: Yes.
Rated output load: 2A at 100 to 240VAC.(50/60Hz).
Load type: General purpose.

NOTE:
Please contact us if you need the Schematic.

Available at Amazon

Related Products

• SainSmart 4-Channel 5V Relay Module for Arduino DSP AVR PIC ARM
• SainSmart 8-Channel 5V Relay Module for Arduino DSP AVR PIC ARM
• Arduino Uno R3
• SainSmart 2-Channel 5V Relay Module for Arduino DSP AVR PIC ARM
• Wall Adapter Power Supply - 9VDC 650mA

Customer Reviews

*** Product Information and Prices Stored: Mar 25, 2012 04:45:06

SainSmart Ethernet Shield for Arduino UNO MEGA Duemilanove*New version W5100* Review

SainSmart Ethernet Shield for Arduino UNO MEGA Duemilanove*New version W5100* Feature

• For all version of arduino Main board, 2009 , UNO, mega 1280, mega 2560, Nano, Duemilanove
• With this Ethernet Shield, your Arduino board can be used to connect to internet
• Controller: w5100, works as server or client
• Comes with efficient library and examples
• Direct plug puzzle board, NO soldering needed

SainSmart Ethernet Shield for Arduino UNO MEGA Duemilanove*New version W5100* Overview

The Arduino Ethernet Shield allows an Arduino board to connect to the internet. It is based on the Wiznet W5100 ethernet chip. The Wiznet W5100 provides a network (IP) stack capable of both TCP and UDP. It supports up to four simultaneous socket connections. Use the Ethernet library to write sketches which connect to the internet using the shield.

The new Ethernet shield now includes a micro SD card connector, it is MEGA compatible and an on-board reset controller.

The ethernet shield connects to an Arduino board using long wire-wrap headers which extend through the shield. This keeps the pin layout intact and allows another shield to be stacked on top.

Arduino uses digital pins 10, 11, 12, and 13 (SPI) to communicate with the W5100 on the ethernet shield. These pins cannot be used for general i/o.

Available at Amazon

Related Products

• Arduino Uno R3
• Arduino UNO board
• SainSmart LCD Keypad Shield for Arduino UNO MEGA Duemilanove
• BB400 Solderless Plug-in BreadBoard, 400 tie-points, 4 power rails, 3.3 x 2.1 x 0.3in (84 x 54 x 9mm)
• Building Wireless Sensor Networks: with ZigBee, XBee, Arduino, and Processing

Customer Reviews

*** Product Information and Prices Stored: Mar 24, 2012 03:30:07

NEW USB-QC30R2 PLC Programming Cable For Mitsubishi Q Series USB USB-QC30R2 Sell one like this NEW USB-QC30R2 PLC Programming Cable For Mitsubishi Q Series USB USB-QC30R2 Review

NEW USB-QC30R2 PLC Programming Cable For Mitsubishi Q Series USB USB-QC30R2 Sell one like this NEW USB-QC30R2 PLC Programming Cable For Mitsubishi Q Series USB USB-QC30R2 Feature

• This is a replacement for Mitsubishi USB-SC09-FX USB OEM
• Same functions with bargain price!
• Driver CD comes with the cable.

NEW USB-QC30R2 PLC Programming Cable For Mitsubishi Q Series USB USB-QC30R2 Sell one like this NEW USB-QC30R2 PLC Programming Cable For Mitsubishi Q Series USB USB-QC30R2 Overview

This professional made cable directly from industrial automation factory has all the exact same functions as the the original one and perfectly meets your need to communicate between PLC and PC.

Only a fraction of the cost for the industrial product you want.

The quality is guaranteed. It's tested before shipment.

Available at Amazon

Related Products

Customer Reviews

*** Product Information and Prices Stored: Mar 23, 2012 03:15:05

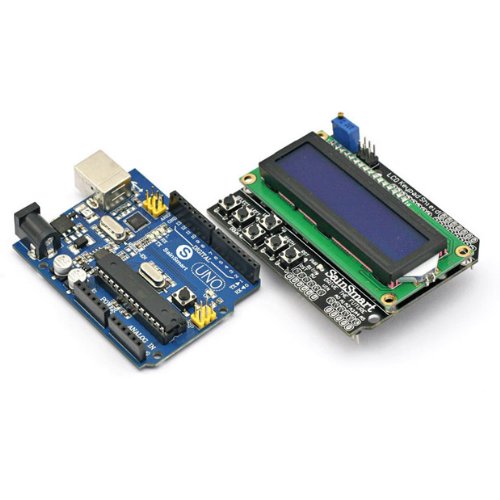

SainSmart LCD Keypad Shield+SainSmart UNO for Arduino, ATmega328P Review

SainSmart LCD Keypad Shield+SainSmart UNO for Arduino, ATmega328P Feature

• The 16x2 LCD Keypad module is for Arduino Diecimila Duemilanove, UNO, MEGA1280, MEGA2560 board.
• Blue Backlight with white words, adjustable backlighting;4 Bit Arduino LCD Library
• The SainSmart Uno board features the Atmega8U2 programmed as a USB-to-serial converter
• Simply connect Uno board to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.
• Buy them TOGETHER and get at the REDUCE price. It is a big bargain!!!

SainSmart LCD Keypad Shield+SainSmart UNO for Arduino, ATmega328P Overview

NOTE: Please send e-mail to us for sch.pdf if you need one after your purchase.

LCD Keypad shield for Arduino: This SainSmart LCD Keypad Shield includes a 16x2 HD44780 White on Blue LCD module and a 5 push button keypad for menu selection and user interface programming. Fully assembled. On-line Arduino tutorial and example code. Compatible with Arduino Uno, Mega, Duemilanove. Uses digital pins 4 - 10, and analog pin 0.

The SainSmart Uno Board for Arduino: This is a microcontroller board based on the ATmega328. It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.

The Uno differs from all preceding boards in that it does not use the FTDI USB-to-serial driver chip. Instead, it features the Atmega8U2 programmed as a USB-to-serial converter and has a resistor pulling the 8U2 HWB line to ground, making it easier to put into DFU mode.

Package Content:
1 SainSmart LCD Keypad Shield
1 SainSmart Uno Board

Available at Amazon

Related Products

Customer Reviews

*** Product Information and Prices Stored: Mar 22, 2012 03:00:07

Arduino Ethernet Shield R3 Review

Arduino Ethernet Shield R3 Feature

• Ethernet Shield for Arduino R3
• Develop TCP/IP enabled client and server applications on your Arduino board
• Freeduino compatible
• micro-SD socket (with active voltage translator) and reset switch (on board reset controller)
• Arduino MEGA and MEGA 2560 compatible

Arduino Ethernet Shield R3 Overview

The Arduino Ethernet shield allows an Arduino board to connect to a LAN using the Ethernet library. New version with micro-SD socket, reset switch and compatible with Arduino MEGA. Now shipping the new R3 board that fits Arduino UNO R3 and Arduino MEGA 2560 R3 boards. It is also backwards compatible with R2 and older boards (if the boards do not interfere with the new expanded pin headers on the R3 boards)

Available at Amazon

Related Products

• Arduino Uno R3
• BB400 Solderless Plug-in BreadBoard, 400 tie-points, 4 power rails, 3.3 x 2.1 x 0.3in (84 x 54 x 9mm)
• Box for Arduino
• Breadboard jumper wire 70pcs pack
• Ultrasonic Module HC-SR04 Distance Sensor For Arduino

Customer Reviews

*** Product Information and Prices Stored: Mar 21, 2012 02:45:05

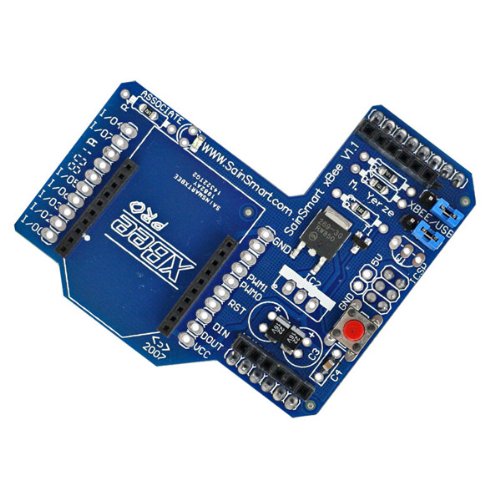

SainSmart Xbee Shield Module for Arduino UNO MEGA Duemilanove Review

SainSmart Xbee Shield Module for Arduino UNO MEGA Duemilanove Feature

• Ranges 2-3 times beyond the standard ZigBee modules
• Easy to install with the Arduino
• Works with simple AT command
• Low power consumption

SainSmart Xbee Shield Module for Arduino UNO MEGA Duemilanove Overview

The Arduino XBee board mates directly with the Arduino USB board and allows to wireless communicate over a modified ZigBee protocol using the popular XBee module from Maxstream.

The Arduino XBee shield (an Expansion Board without XBee module) is a compliant solution designed to meet low-cost, low-power wireless sensor networks with special needs. The module is easy to use, low power consumption, and the provision of critical data between devices reliable transmission. As the innovative design, XBee-PRO can be in the range 2-3 times beyond the standard ZigBee modules. XBee-PRO modules work in the ISM 2.4 GHz frequency band. The MaxStream's XBee (1 mW) Zigbee module is pin-compatible.You can use a simple AT command to advanced configuration. An OEM developer is now XBee code development package. It is self-developed in collaboration with the MaxStream ZigBee/802.15.4 RF module code.

Available at Amazon

Related Products

• Wall Adapter Power Supply - 9VDC 650mA
• Arduino UNO board
• XBee 1mW Chip Antenna - Series 1
• Xbee Shield DIY KIT for Arduino
• Breadboard jumper wire 70pcs pack

Customer Reviews

*** Product Information and Prices Stored: Mar 20, 2012 02:00:13

Arduino Uno R3 Review

Arduino Uno R3 Feature

• Arduino UNO R3 board
• Announced December 2nd, 2011
• Includes new pin configuration (SCL, SDA, IOREF)
• ATmega328P
• Original board made in Italy

Arduino Uno R3 Overview

Overview: The Arduino Uno is a microcontroller board based on the ATmega328 (datasheet). It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started. The Uno differs from all preceding boards in that it does not use the FTDI USB-to-serial driver chip. Instead, it features the Atmega16U2 (Atmega8U2 up to version R2) programmed as a USB-to-serial converter. Revision 2 of the Uno board has a resistor pulling the 8U2 HWB line to ground, making it easier to put into DFU mode. Revision 3 of the board has the following new features: 1.0 pinout: added SDA and SCL pins that are near to the AREF pin and two other new pins placed near to the RESET pin, the IOREF that allow the shields to adapt to the voltage provided from the board. In future, shields will be compatible both with the board that use the AVR, which operate with 5V and with the Arduino Due that operate with 3.3V. The second one is a not connected pin, that is reserved for future purposes. Stronger RESET circuit. Atmega 16U2 replace the 8U2. "Uno" means one in Italian and is named to mark the upcoming release of Arduino 1.0. The Uno and version 1.0 will be the reference versions of Arduino, moving forward. The Uno is the latest in a series of USB Arduino boards, and the reference model for the Arduino platform; for a comparison with previous versions, see the index of Arduino boards.

Available at Amazon

Related Products

• Wall Adapter Power Supply - 9VDC 650mA
• BB400 Solderless Plug-in BreadBoard, 400 tie-points, 4 power rails, 3.3 x 2.1 x 0.3in (84 x 54 x 9mm)
• Getting Started With Arduino book parts plus pack
• microtivity 400-point Experiment Breadboard w/ Jumper Wires
• Elenco 350 Piece Pre-formed Jumper Wire Kit

Customer Reviews

*** Product Information and Prices Stored: Mar 19, 2012 01:15:07

SainSmart Arduino MEGA, ATmega2560 + SainSmart Sensor Shield V5 Review

SainSmart Arduino MEGA, ATmega2560 + SainSmart Sensor Shield V5 Feature

• The SainSmart Arduino MEGA, ATmega2560 is a microcontroller board based on the ATmega2560.
• The SainSmart sensor shield can connect to various modules like sensors, servos, relays, buttons, potentiometers.
• Buy them TOGETHER and get at the REDUCE price. It is a big bargain!!!

SainSmart Arduino MEGA, ATmega2560 + SainSmart Sensor Shield V5 Overview

NOTE: Please send e-mail to us for sch.pdf if you need one after your purchase.

The SainSmart MEGA 2560 Board for Arduino: This is a microcontroller board based on the ATmega2560. It has 54 digital input/output pins (of which 14 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.

The SainSmart Sensor Shield V5 (new version) has the COM and I2C (IIC) ports separated,so that both ports can be utilized at the same time to increase the possibilities of use.

Arduino Sensor Shield allows you to connect to various modules like sensors, servos, relays, buttons, potentiometers and so on.Just plug & play.Each functional module has buckled port with VCC, GND and Output, which has corresponding port on the Sensor Shield, connected with a plain 2.54mm dual-female cable you may start playing already. Buckled brick cables are like cement for bricks, make the connections easier, securer and more professional.

Package Content:
1 SainSmart Mega 2560
1 SainSmart Sensor Shield V5

Available at Amazon

Related Products

Customer Reviews

*** Product Information and Prices Stored: Mar 17, 2012 23:30:09

Arduino MEGA 2560 Board Review

Arduino MEGA 2560 Board Feature

• Arduino MEGA 2560
• ATmega2560
• Original Board made in Italy

Arduino MEGA 2560 Board Overview

The Arduino Mega 2560 is a microcontroller board based on the ATmega2560. It has 54 digital input/output pins (of which 14 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started. The Mega is compatible with most shields designed for the Arduino Duemilanove or Diecimila

Available at Amazon

Related Products

• Wall Adapter Power Supply - 9VDC 650mA
• BB400 Solderless Plug-in BreadBoard, 400 tie-points, 4 power rails, 3.3 x 2.1 x 0.3in (84 x 54 x 9mm)
• Elenco 350 Piece Pre-formed Jumper Wire Kit
• Box for Arduino
• LCD Module for Arduino 20 x 4, White on Blue

Customer Reviews

*** Product Information and Prices Stored: Mar 16, 2012 19:45:05

SainSmart ADXL335 Triple Axis Accelerometer Breakout Module for Arduino Review

SainSmart ADXL335 Triple Axis Accelerometer Breakout Module for Arduino Feature

• 3-axis sensing
• Small, low profile package;4 mm × 4 mm × 1.45 mm LFCSP
• Low power : 350 ?A (typical); Single-supply operation: 1.8 V to 3.6 V
• Excellent temperature stability
• BW adjustment with a single capacitor per axis

SainSmart ADXL335 Triple Axis Accelerometer Breakout Module for Arduino Overview

The ADXL335 is a small, thin, low power, complete 3-axis accel- erometer with signal conditioned voltage outputs.
The product measures acceleration with a minimum full-scale range of ±3 g.It can measure the static acceleration of gravity in tilt-sensing applications, as well as dynamic acceleration resulting from motion, shock, or vibration.
The user selects the bandwidth of the accelerometer using the CX, CY, and CZ capacitors at the XOUT, YOUT, and ZOUT pins. Bandwidths can be selected to suit the application, with a range of 0.5 Hz to 1600 Hz for the X and Y axes, and a range of 0.5 Hz to 550 Hz for the Z axis.
The ADXL335 is available in a small, low profile, 4 mm × 4 mm × 1.45 mm, 16-lead, plastic lead frame chip scale package

Available at Amazon

Related Products

• Wall Adapter Power Supply - 9VDC 650mA
• Arduino: A Quick Start Guide (Quick-Start Guides)
• Arduino Uno R3

Customer Reviews

*** Product Information and Prices Stored: Mar 15, 2012 15:15:05

SainSmart LCD Keypad Shield + SainSmart Prototype Shield(with Breadboard Jump Wires) Review

SainSmart LCD Keypad Shield + SainSmart Prototype Shield(with Breadboard Jump Wires) Feature

• The SainSmart LCD Keypad shield module for Arduino Diecimila Duemilanove, UNO, MEGA1280, MEGA2560 board.
• SainSmart Prototype Shield: Access to a BlueSMiRF socket for wireless communication between Arduinos
• Buy them TOGETHER and get at the REDUCE price. It is a big bargain!!!

SainSmart LCD Keypad Shield + SainSmart Prototype Shield(with Breadboard Jump Wires) Overview

NOTE:The link is the instructions about keypad shield.

https://s3-ap-northeast-1.amazonaws.com/sain-amzn/20/20-011-901/LCD1602.rar

The SainSmart LCD Keypad Shield includes a 16x2 HD44780 White on Blue LCD module and a 5 push button keypad for menu selection and user interface programming. Fully assembled. On-line Arduino tutorial and example code. Compatible with Arduino Uno, Mega, Duemilanove. Uses digital pins 4 - 10, and analog pin 0.

The SainSmart Prototyping Prototype Shield is a great kit to new Arduino users and geeks who have sparkling ideas. You can choose to do soldering in the soldering area. You can also make good use of the mini breadboard which can save your time of soldering.


Package Content:
1 SainSmart LCD Keypad Shield
1 SainSmart Prototype Shield
1 Mini Breadboard
65*Jumper Cable

Available at Amazon

Related Products

Customer Reviews

*** Product Information and Prices Stored: Mar 14, 2012 06:00:07

SainSmart Arduino UNO + SainSmart Graphic LCD4884 Shield Review

SainSmart Arduino UNO + SainSmart Graphic LCD4884 Shield Feature

• The SainSmart UNO is a microcontroller board based on the ATmega328.
• And is equipped with 14 digital I/O pins, six of which can be used as PWM outputs, 6 analog inputs, 16MHz oscillator, USB interface, DC power jack and an ICSP header.
• SainSmart Graphic LCD4884 Shield has SPI Interface (using Arduino Digital Pin 2,3,4,5,6)
• Also has one 5 degree joystick (using Arduino Analog Pin 0)

SainSmart Arduino UNO + SainSmart Graphic LCD4884 Shield Overview

The link bellow is the code for the LCD4884. Please download it if you need it.
https://s3-ap-northeast-1.amazonaws.com/sain-amzn/20/20-011-906/LCD4884s.rar

The SainSmart Uno for Arduino is a microcontroller board based on the ATmega328. It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.

The Uno differs from all preceding boards in that it does not use the FTDI USB-to-serial driver chip. Instead, it features the Atmega8U2 programmed as a USB-to-serial converter and has a resistor pulling the 8U2 HWB line to ground, making it easier to put into DFU mode.

This SainSmart LCD4884 Shield provides 48x48 display. If your project need more information to display, this LCD shield can apparently meet your needs. It is able to display English, Chinese, even images. It also integrates a 5 DOF joystick. The shield has 6 Digital IO and 5 Analog IO.

This 3 pin connector has a temperature sensor which can help indicate the temperature.

Available at Amazon

Related Products

Customer Reviews

*** Product Information and Prices Stored: Mar 13, 2012 02:30:06

SainSmart Graphic LCD4884 Shield for Arduino Uno MEGA and Duemilanove Review

SainSmart Graphic LCD4884 Shield for Arduino Uno MEGA and Duemilanove Feature

• SPI Interface (using Arduino Digital Pin 2,3,4,5,6)
• One Reset button
• One 5 degree joystick (using Arduino Analog Pin 0)
• Backlit control (Arduino DIO Pin 7)
• Power Supply: 5V

SainSmart Graphic LCD4884 Shield for Arduino Uno MEGA and Duemilanove Overview

The link bellow is the code for the board. Please download it if you need it.
https://s3-ap-northeast-1.amazonaws.com/sain-amzn/20/20-011-906/LCD4884s.rar

This SainSmart LCD4884 Shield provides 48x48 display. If your project need more information to display, this LCD shield can apparently meet your needs. It is able to display English, Chinese, even images. It also integrates a 5 DOF joystick. The shield has 6 Digital IO and 5 Analog IO.

This 3 pin connector has a temperature sensor which can help indicate the temperature.

Note:The Arduino in the image is NOT included.

Available at Amazon

Related Products

• BB400 Solderless Plug-in BreadBoard, 400 tie-points, 4 power rails, 3.3 x 2.1 x 0.3in (84 x 54 x 9mm)

Customer Reviews

*** Product Information and Prices Stored: Mar 11, 2012 22:00:07

SainSmart ATMEL Pro Mini AVR Boards for Arduino + USB Adapter Review

SainSmart ATMEL Pro Mini AVR Boards for Arduino + USB Adapter Feature

• USB Adapter's Chip: FT232RL
• Supports 5V and 3.3V power supply, 300bps ~ 3Mbps baud rate between the standard
• Output interfaces: 5V, TXD, RXD, GND, 3.3V, DTR, can directly programme the arduino development board, also can be used as high-quality USB serial port
• Operating systems: Windows 7, Mac OS X, Windows CE, Windows vista, Windows XP, Windows 2000, Window 98
• Spontaneous self-closing is to receive its own transmitted data is received their own TXD RXD, used to send and receive the test itself is normal. Also known as loop-back test.

SainSmart ATMEL Pro Mini AVR Boards for Arduino + USB Adapter Overview

The SainSmart Arduino Pro Mini for Arduino is a microcontroller board based on the ATmega168.
It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, an on-board resonator, a reset button, and holes for mounting pin headers. A six pin header can be connected to an FTDI cable or Sparkfun breakout board to provide USB power and communication to the board.
The SainSmart Arduino Pro Mini for Arduino is intended for semi-permanent installation in objects or exhibitions.
The board comes without pre-mounted headers, allowing the use of various types of connectors or direct soldering of wires. The pin layout is compatible with the Arduino Mini. There are two version of the Pro Mini. One runs at 3.3V and 8 MHz, the other at 5V and 16 MHz. The Arduino Pro Mini was designed and manufactured by SparkFun Electronics.

Summary for SainSmart Arduino Pro Mini for Arduino
Microcontroller: ATmega168
Operating Voltage: 5V
Input Voltage: 5 - 12 V (5V model)
Digital I/O Pins: 14 (of which 6 provide PWM output)
Analog Input Pins: 6
DC Current per I/O Pin: 40 mA
Flash Memory: 16 KB (of which 2 KB used by bootloader)
SRAM: 1 KB
EEPROM: 512 bytes
Clock Speed: 16 MHz (5V model)

Package List:
1x SainSmart USB Adapter 2012 for Arduino
1x 6 P dupont line
1x SainSmart Pro Mini for Arduino

Available at Amazon

Related Products

Customer Reviews

*** Product Information and Prices Stored: Mar 10, 2012 20:30:05

SainSmart Arduino MEGA, ATmega2560 + SainSmart Ethernet Shield Review

SainSmart Arduino MEGA, ATmega2560 + SainSmart Ethernet Shield Feature

• The SainSmart Arduino MEGA, ATmega2560 is a microcontroller board based on the ATmega2560.
• The SainSmart Ethernet Shield, your Arduino board can be used to connect to internet.
• Buy them TOGETHER and get at the REDUCE price. It is a big bargain!!!

SainSmart Arduino MEGA, ATmega2560 + SainSmart Ethernet Shield Overview

NOTE: Please send e-mail to us for sch.pdf if you need one after your purchase.

The SainSmart MEGA 2560 Board for Arduino: This is a microcontroller board based on the ATmega2560. It has 54 digital input/output pins (of which 14 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.

The SainSmart Ethernet Shield for Arduino: This allows an Arduino board to connect to the internet. It is based on the Wiznet W5100 ethernet chip. The Wiznet W5100 provides a network (IP) stack capable of both TCP and UDP. It supports up to four simultaneous socket connections. Use the Ethernet library to write sketches which connect to the internet using the shield.

The new Ethernet shield now includes a micro SD card connector, it is MEGA compatible and an on-board reset controller.
The ethernet shield connects to an Arduino board using long wire-wrap headers which extend through the shield. This keeps the pin layout intact and allows another shield to be stacked on top.
Arduino uses digital pins 10, 11, 12, and 13 (SPI) to communicate with the W5100 on the ethernet shield. These pins cannot be used for general i/o.

Package Content:
1 SainSmart Mega 2560
1 SainSmart Ethernet Shield

Available at Amazon

Related Products

Customer Reviews

*** Product Information and Prices Stored: Mar 09, 2012 10:00:12

SainSmart Prototyping Prototype Shield Mini Breadboard for arduino UNO Review

SainSmart Prototyping Prototype Shield Mini Breadboard for arduino UNO Feature

• SainSmart Prototype Shield: Access to a BlueSMiRF socket for wireless communication between Arduinos
• 2 general LEDs;1 general pushbutton switch;1 Arduino reset switch brought to top level
• 5V, GND, and Raw pins are exposed as well
• Breadboard Jump Wires: Self-adhesive backing to stick on the Arduino Protoytpe Shield
• 170 tie points.

SainSmart Prototyping Prototype Shield Mini Breadboard for arduino UNO Overview

It is a great kit to new Arduino users and geeks who have sparkling ideas. You can choose to do soldering in the soldering area. You can also make good use of the mini breadboard which can save your time of soldering. Try any circuit you want to the Arduino. You also can choose to use your own breadboard.

Package List:
1x SainSmart Prototype Shield
1x Mini Breadboard
65x Jumper Cable

Available at Amazon

Related Products

Customer Reviews

*** Product Information and Prices Stored: Mar 08, 2012 06:00:11

Xbee Shield DIY KIT for Arduino Review

Xbee Shield DIY KIT for Arduino Feature

• Prototyping Area
• 100% compatible with XBee Shield V1.0
• RSSI LED (Received Signal Strength Indicator)
• XBee module firmware upgrade jumpers
• Associate indicator LED

Xbee Shield DIY KIT for Arduino Overview

The XBee shield is a product developed by Libelium together with the Arduino team. It is a shield that, mounted on the Arduino board, allows to establish wireless communication between different devices. This kit includes the THIRD version of the XBee Shield, developed by NKC Electronics.Assembly and soldering required. XBee module not included.

Available at Amazon

Related Products

• Arduino UNO board
• Wall Adapter Power Supply - 9VDC 650mA
• Breadboard jumper wire 70pcs pack
• RGB LCD Shield for Arduino 65K color KIT
• Box for Arduino

Customer Reviews

*** Product Information and Prices Stored: Mar 07, 2012 03:00:08

SainSmart Arduino MEGA, ATmega2560 + SainSmart LCD Keypad Shield + SainSmart XBee Shield + SainSmart Sensor Shield V5 Review

SainSmart Arduino MEGA, ATmega2560 + SainSmart LCD Keypad Shield + SainSmart XBee Shield + SainSmart Sensor Shield V5 Feature

• The SainSmart Arduino MEGA, ATmega2560 is a microcontroller board based on the ATmega2560.
• The SainSmart LCD Keypad shield module for Arduino Diecimila Duemilanove, UNO, MEGA1280, MEGA2560 board
• The SainSmart XBee Shield is a compliant solution designed to meet low-cost, low-power wireless sensor networks with special needs
• The SainSmart sensor shield can connect to various modules like sensors, servos, relays, buttons, potentiometers.
• Buy them TOGETHER and get at the REDUCE price. It is a big bargain!!!

SainSmart Arduino MEGA, ATmega2560 + SainSmart LCD Keypad Shield + SainSmart XBee Shield + SainSmart Sensor Shield V5 Overview

NOTE: Please send e-mail to us for sch.pdf if you need one after your purchase.

The SainSmart MEGA 2560 Board for Arduino: This is a microcontroller board based on the ATmega2560. It has 54 digital input/output pins (of which 14 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.

The SainSmart LCD Keypad Shield for Arduino: This includes a 16x2 HD44780 White on Blue LCD module and a 5 push button keypad for menu selection and user interface programming. Fully assembled. On-line Arduino tutorial and example code. Compatible with Arduino Uno, Mega, Duemilanove. Uses digital pins 4 - 10, and analog pin 0.

The SainSmartArduino XBee board for Arduino: It mates directly with the Arduino USB board and allows to wireless communicate over a modified ZigBee protocol using the popular XBee module from Maxstream.

The SainSmart Sensor Shield V5 (new version) has the COM and I2C (IIC) ports separated,so that both ports can be utilized at the same time to increase the possibilities of use.It allows you to connect to various modules like sensors, servos, relays, buttons, potentiometers and so on.

Package Content:
1 SainSmart Mega 2560
1 SainSmart XBee Shield
1 SainSmart LCD Keypad Shield
1 SainSmart Sensor Shield V5

Available at Amazon

Related Products

Customer Reviews

*** Product Information and Prices Stored: Mar 06, 2012 02:19:12

Ethernet Shield for Arduino Review

Ethernet Shield for Arduino Feature

• DFRduino Ethernet Shield is compatible with the standard Arduino Ethernet library
• Compatible with Arduino Duemianove, Uno, Mega 1280 and 2560
• Based on the Wiznet W5100 ethernet chip and comes fully assembled
• Easy to follow on-line tutorials and example Arduino code
• Micro SD card slot for data logging

Ethernet Shield for Arduino Overview

The DFRduino Ethernet Shield V2 is finally released. This new version supports Mega both 1280 and 2560, as well as the Uno and Duemilanove boards. And it supports SD card read/write as well. The ethernet shield is fully assembled.The V2 Ethernet Shield is compatible with Ardunio Ethernet Shield. With the official ethernet library, this Ethernet shield is a very affordable way to get your Arduino projected connected to the network/Internet.The Arduino Ethernet Shield allows an Arduino board to connect to the internet. It is based on the Wiznet W5100 ethernet chip. The Wiznet W5100 provides a network (IP) stack capable of both TCP and UDP. It supports up to four simultaneous socket connections. Use the Ethernet library to write sketches which connect to the internet using the shield.The ethernet shield connects to an Arduino board using long wire-wrap headers which extend through the shield. This keeps the pin layout intact and allows another shield to be stacked on top.Arduino uses digital pins 10, 11, 12, and 13 (SPI) to communicate with the W5100 on the ethernet shield. These pins cannot be used for general i/o.The shield provides a standard RJ45 ethernet jack.The reset button on the shield resets both the W5100 and the Arduino board.The shield contains a number of informational LEDs: * PWR: indicates that the board and shield are powered * LINK: indicates the presence of a network link and flashes when the shield transmits or receives data * FULLD: indicates that the network connection is full duplex * 100M: indicates the presence of a 100 Mb/s network connection (as opposed to 10 Mb/s) * RX: flashes when the shield receives data * TX: flashes when the shield sends data * COLL: flashes when network collisions are detected

Available at Amazon

Related Products

• Wall Adapter Power Supply - 9VDC 650mA
• Arduino UNO board
• LCD Module for Arduino 20 x 4, White on Blue
• Arduino MEGA 2560 Board
• Elenco 350 Piece Pre-formed Jumper Wire Kit

Customer Reviews

*** Product Information and Prices Stored: Mar 06, 2012 02:15:45
