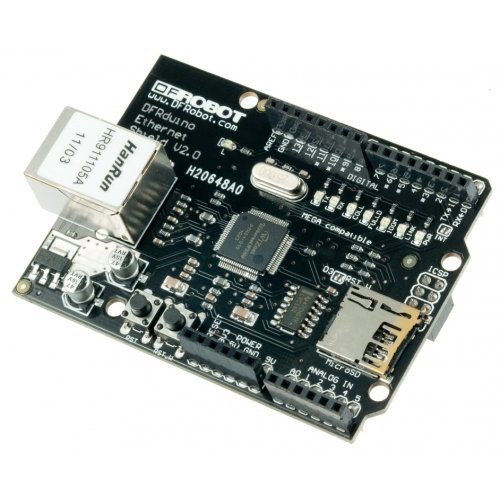

Ethernet Shield for Arduino

Ethernet Shield for Arduino Review

Ethernet Shield for Arduino Feature

• DFRduino Ethernet Shield is compatible with the standard Arduino Ethernet library
• Compatible with Arduino Duemianove, Uno, Mega 1280 and 2560
• Based on the Wiznet W5100 ethernet chip and comes fully assembled
• Easy to follow on-line tutorials and example Arduino code
• Micro SD card slot for data logging

Ethernet Shield for Arduino Overview

The DFRduino Ethernet Shield V2 is finally released. This new version supports Mega both 1280 and 2560, as well as the Uno and Duemilanove boards. And it supports SD card read/write as well. The ethernet shield is fully assembled.The V2 Ethernet Shield is compatible with Ardunio Ethernet Shield. With the official ethernet library, this Ethernet shield is a very affordable way to get your Arduino projected connected to the network/Internet.The Arduino Ethernet Shield allows an Arduino board to connect to the internet. It is based on the Wiznet W5100 ethernet chip. The Wiznet W5100 provides a network (IP) stack capable of both TCP and UDP. It supports up to four simultaneous socket connections. Use the Ethernet library to write sketches which connect to the internet using the shield.The ethernet shield connects to an Arduino board using long wire-wrap headers which extend through the shield. This keeps the pin layout intact and allows another shield to be stacked on top.Arduino uses digital pins 10, 11, 12, and 13 (SPI) to communicate with the W5100 on the ethernet shield. These pins cannot be used for general i/o.The shield provides a standard RJ45 ethernet jack.The reset button on the shield resets both the W5100 and the Arduino board.The shield contains a number of informational LEDs: * PWR: indicates that the board and shield are powered * LINK: indicates the presence of a network link and flashes when the shield transmits or receives data * FULLD: indicates that the network connection is full duplex * 100M: indicates the presence of a 100 Mb/s network connection (as opposed to 10 Mb/s) * RX: flashes when the shield receives data * TX: flashes when the shield sends data * COLL: flashes when network collisions are detected
