SainSmart ATMEL Pro Mini AVR Boards for Arduino + USB Adapter Review
SainSmart ATMEL Pro Mini AVR Boards for Arduino + USB Adapter Feature
- USB Adapter's Chip: FT232RL
- Supports 5V and 3.3V power supply, 300bps ~ 3Mbps baud rate between the standard
- Output interfaces: 5V, TXD, RXD, GND, 3.3V, DTR, can directly programme the arduino development board, also can be used as high-quality USB serial port
- Operating systems: Windows 7, Mac OS X, Windows CE, Windows vista, Windows XP, Windows 2000, Window 98
- Spontaneous self-closing is to receive its own transmitted data is received their own TXD RXD, used to send and receive the test itself is normal. Also known as loop-back test.
SainSmart ATMEL Pro Mini AVR Boards for Arduino + USB Adapter Overview
The SainSmart Arduino Pro Mini for Arduino is a microcontroller board based on the ATmega168.
It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, an on-board resonator, a reset button, and holes for mounting pin headers. A six pin header can be connected to an FTDI cable or Sparkfun breakout board to provide USB power and communication to the board.
The SainSmart Arduino Pro Mini for Arduino is intended for semi-permanent installation in objects or exhibitions.
The board comes without pre-mounted headers, allowing the use of various types of connectors or direct soldering of wires. The pin layout is compatible with the Arduino Mini. There are two version of the Pro Mini. One runs at 3.3V and 8 MHz, the other at 5V and 16 MHz. The Arduino Pro Mini was designed and manufactured by SparkFun Electronics.
Summary for SainSmart Arduino Pro Mini for Arduino
Microcontroller: ATmega168
Operating Voltage: 5V
Input Voltage: 5 - 12 V (5V model)
Digital I/O Pins: 14 (of which 6 provide PWM output)
Analog Input Pins: 6
DC Current per I/O Pin: 40 mA
Flash Memory: 16 KB (of which 2 KB used by bootloader)
SRAM: 1 KB
EEPROM: 512 bytes
Clock Speed: 16 MHz (5V model)

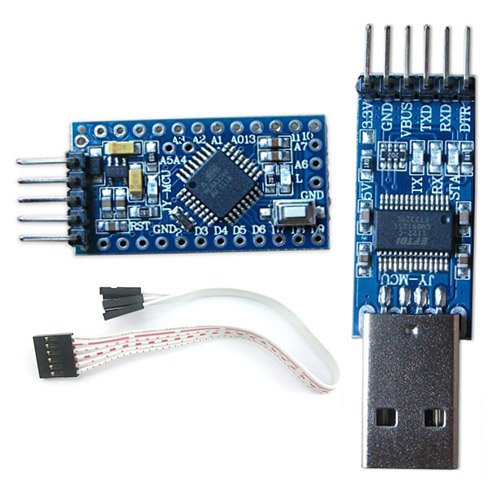

Package List:
1x SainSmart USB Adapter 2012 for Arduino
1x 6 P dupont line
1x SainSmart Pro Mini for Arduino
